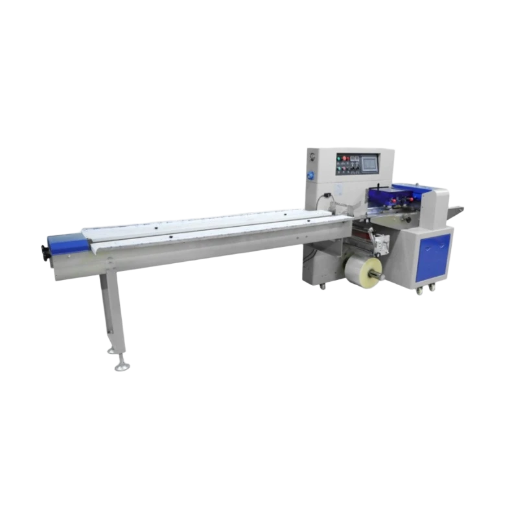

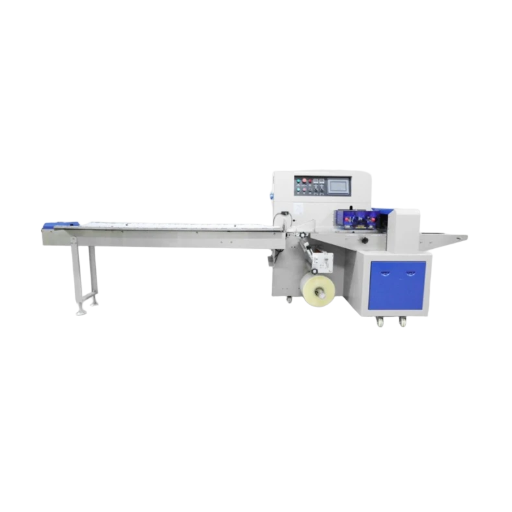

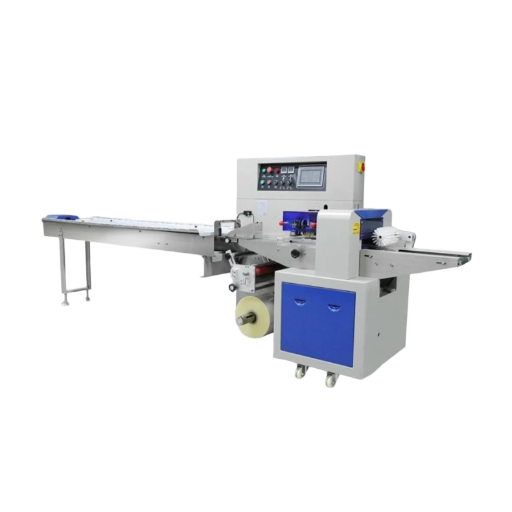

220V High Efficiency Automatic Packing Machine Seal Packaging Machine
$6500.00
220V High Efficiency Automatic Packing Machine Seal Packaging Machine
Model | ZR - 600D |
|---|---|
Film width | Max. 590 mm |
Length of package | 120-450 mm |
Width of package | 100-270 mm |
Product height | Max. 80 mm |
Packing speed | 40-80 packages/min |
Voltage | 220V 50/60Hz, 3.2KW |
Dimensions | L4380 x W970 xH1500 mm |
Weight | 700kgs |
Performance and Structural Features
1. Dual-motor drive with inverter and PLC control. Set-and-cut bag length function requires no adjustment or idle run, achieving one-step operation to save time and film.
2. User-friendly interface for quick and easy parameter setting.
3. Self-diagnostic function for faults, displaying issues clearly.
4. High-sensitivity photoelectric eye for color mark tracking, with digital input for sealing and cutting positions, ensuring greater accuracy.
5. Independent PID temperature control, adaptable to various packaging materials.
6. Positioning stop function to prevent blade adhesion and reduce film waste.
7. Simplified transmission system for enhanced reliability, easier maintenance, and upkeep.
8. All controls are software-based, enabling convenient function adjustments and technical upgrades, ensuring long-term relevance.
